DC Meter

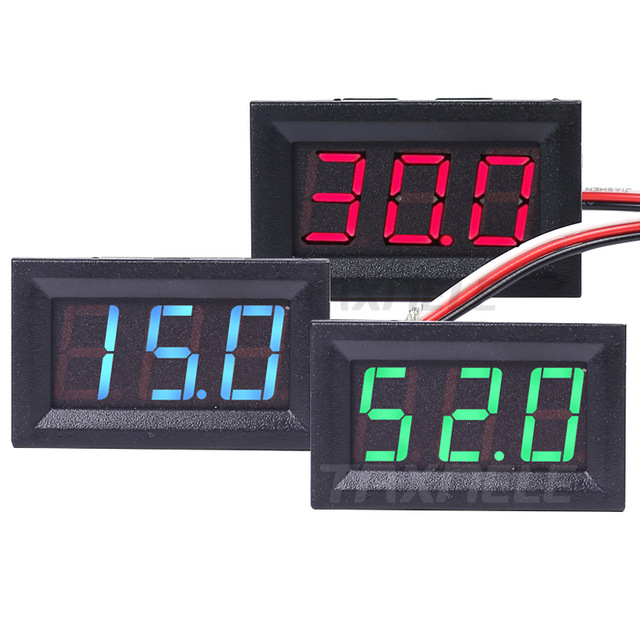

0.56 inch 3 wire LED Digital Voltmeter

Measuring Range :DC0-40V, DC0-100V

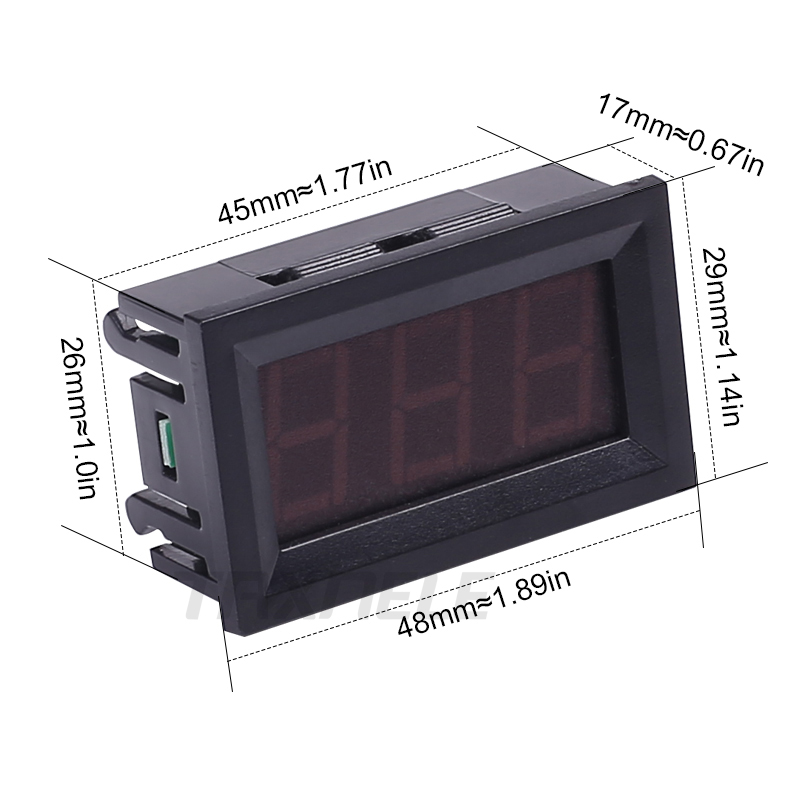

Installation size:46x27mm
Wire length:20cm
Display color :Red Green Blue
Product description: The voltage of this voltmeter's working power supply is 4.5-30V，30V is the voltmeter’s maximum operating limited voltage，please leave enough margin when working，to avoid voltmeter’s permanent damage b
INQUIRY

Measuring Range :DC0-40V, DC0-100V(optional）

installation size:46x27mm

Display resolution:0-40V (0.01V below 10V, 0.1V above 10V); 0-100V (fixed 0.1V)

wire length:20cm

Allowable error :1%

Display mode :Three 0.56 inchLED digital tube

Display color :Red Green Blue (optional）

Refresh rate:about 200mS/time

Power supply DC4.5-30V

Current consumption:less than 20mA, generally 5-15mA

Working temperature :-10 ° C ~ 65 ° C
